Aukua's MGA2510 is the only traffic generator, inline analyzer and network impairment emulator testing platform to natively support 2.5G, 5G and 10GBASE-T Ethernet!

The Aukua MGA2510 operates as a powerful Ethernet traffic generator or connects transparently inline as an protocol analyzer, traffic monitoring system or network impairment emulator.

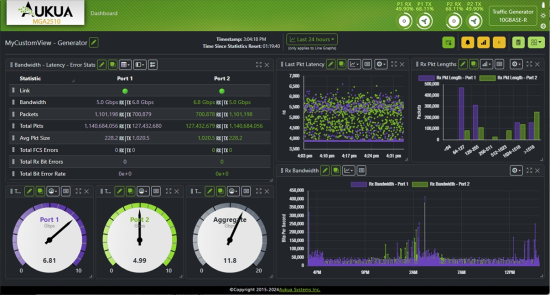

The MGA2510 Traffic Generator supports Bit Error Rate (BER) testing, throughput testing, precise latency measurement analysis and impairment jamming.

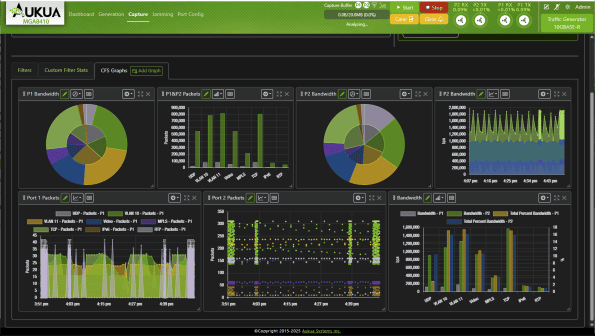

The MGA2510 Inline Analyzer connects transparently inline in the network or test-bed helping our customers detect and resolve complex issues, capture traffic or analyze throughput and error conditions in real-time.

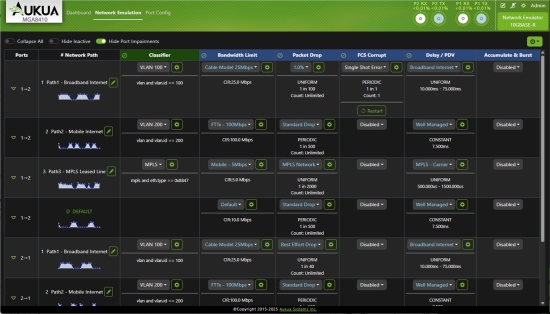

The MGA2510 Network Impairment Emulator connects inline in the test-bed helping our customers recreate network delay and impairments, in the lab, for more realistic performance testing.

Multigigabit Ethernet Support

The Aukua MGA2510 supports 100M to 10G Ethernet testing including the first and only traffic generator and inline analyzer to support IEEE 802.3bz 2.5GBASE-T and 5GBASE-T multigigabit Ethernet speeds.

Simple Intuitive Design

We believe in creating test tools which are intuitive and always productive, even for the occasional user. There is no need to install complex client-side software as our HTML GUI simplifies setup, allowing you to resolve problems faster!

Hundreds of Protocols Supported

Comprehensive layer 1 through layer 7 standard and custom protocol analysis with complete binary, hex and protocol decode views.

Hardware Based Precision and Accuracy

True line-rate performance and nanosecond timestamp precision gives accurate latency measurements and clear visibility into event timing analysis of bidirectional protocols.

Full Automation API

Automation API covers 100% of system functionality and supports operation with Tcl, Python, Perl, C++ and other scripting languages.

Advanced Features

Customizable protocol filters, comprehensive capture triggers, bit error rate testing, delay measurement, real-time statistics, 10MHz/1PPS/ToD ref clk inputs, and much more, help our customers discover and resolve hard to find issues.

IEEE 802.3bzTM approved as new Ethernet standard (2.5G/5G BASE-T)!

Growth in bandwidth demand in enterprise networks is well documented, and new advanced WiFi technologies such as 802.11ac Wave 2 promise to help. However, this increasing demand for bandwidth and improvements in WiFi technology have now exceeded the design limits of current wired access networks operating almost exclusively over Cat5e and Cat6 copper cables. Members of the NBASE-T Alliance recognized this problem and have worked hard the past two years to enable new technology capable of delivering 5Gbps speeds over existing Cat5e/Cat6 cabling up to 100 meters. This means enterprise organizations will not have to upgrade their existing cabling infrastructure to take advantage of the increased speeds. The new IEEE 802.3bz standard adopted much of the baseline technology of the NBASE-T specification and was approved in September 2016.

Aukua is committed to helping our customers deliver reliable high performance solutions and services based on IEEE 802.3bz technology. Our MGA2510 Ethernet test system is the first solution capable of testing over the new standards-based 2.5GBASE-T and 5GBASE-T Ethernet speeds.

Solution Highlights:
  • Traffic generation capabilities to verify performance and function and accurately monitor latency

  • Inline analyzer operation to capture traffic and efficiently troubleshoot hard to find issues

  • Impairment jamming and delay capabilities to verify performance under real-world conditions

  • Unique support for testing and troubleshooting system-side technologies such as USXGMII and XFI

  • Portable platform can be leveraged in-the-field for deploying, troubleshooting and long term monitoring of IEEE 802.3bz capable networks
